Galaxy Express - Growth. Expansion. Flexibility




Flexible expansion chassis

Galaxy Express is built around adaptability and flexibility for your branch office locations. As your offices grow the need for easy expansion that doesn't interrupt your business is important. Galaxy Express is designed for just this purpose.

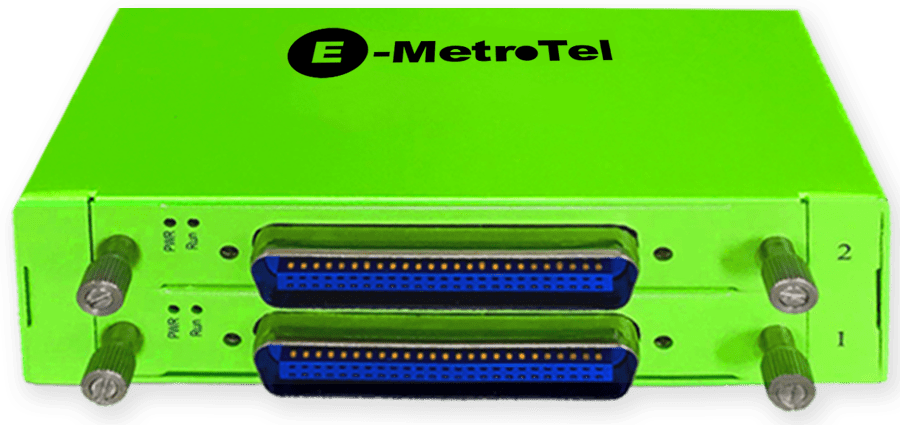

The product is a dual slot expansion module that allows for the expansion and addition of Digital Stations, Analog Stations, PRI, and Analog trunks.

Available card options


Galaxy Digitial Line Card – 16 digital phones.
Galaxy FXS16 Analog Line Card – 16 analog devices.
Galaxy PRI – 1 Single Span PRI Card – 1 PRI circuit.


Galaxy FXS8 - 8-port SIP Gateway card.
Galaxy FXO8 - 8-port SIP Gateway card.
Galaxy FXO/FXS – FXO4/FXS4 SIP gateway card.


Typical configurations

Examples of common Galaxy Express configuration adapted to fit customer needs.

Digital Telephone Configuration
If you are a customer using legacy digital telephones you can protect your investment by utilizing Galaxy Express as the module for connecting your digital telephones. Your digital telephones can be local with your Galaxy Mini or at a remote location via the internet or your WAN.

Analog Device Configuration
Connecting your analog devices such as POTS telephones and FAX machines is easy. With FXS cards installed in Galaxy Express each module supports 8 or 16 analog devices.
Analog devices can be local with your Galaxy Mini or at a remote location via the internet or your WAN

PRI Configuration
If your office uses PRI circuits for DID numbers you can add them to your Galaxy Mini by installing a up to two single span PRI cards for a maximum of two PRI circuits per module.


Technical Specification

Network Interface Dimensions
2x 100/10M RJ45 Length 7 15/16 in (202 mm)
Width: 5 7/8 in (149 mm)
Height: 1 3/4 in (44 mm)
System Cooling Power
Internal Fan 120-240 VAC, 50 - 60 Hz external power supply
12V power input


Supported Telephony Devices

We support digital and analog devices from Nortel, Avaya, and more.
View supported devices on our migration page here: HERE

You can also download the Galaxy Express brochure here: Download Brochure
